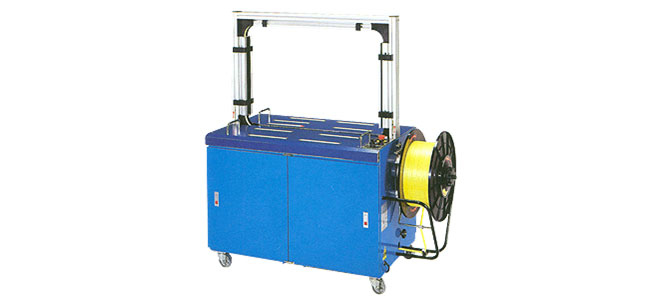

Fully Auto Strapping Machine - PW 0860AS2R


Features :

  • With better design-The pack table is reopening for easy maintenance.
  • The position of strapping can be adjusted by moving the location of sensors.
  • Precision Structure:
    Main machine's component is made of aluminum alloy. Control system is compatible.
    Add on a safety device, built for 24 hrs continous operation.
  • Strengthen the top roller driven for stable effect, the highest-quality and long-lasting durability..
  • Can be independent operation or combine with the conveyors for auto packaging and unmanned strapping system
  • Two sensor sets (can choose strap / non-strap or 1 strap / 2straps)

Specifications :

Technical Specifications
Power supply 3phase, 220V, 380V, 440V, 50/60Hz
Strap width 9~19mm
Tension adjustment Ajustable
Strapping Speed 2.4sec./per cycle
Power consumption 1250W
Max. package size W850 x H600mm(W33.5 x H23.6inch)
Min. package size L350 x W400 x H30(mm)
L13.7 x W15.7 x H1.2(inch)
Dimension (LxWxH) L1645 x W760 x 1535(mm)
Net weight 330kgs/726(lbs)
Gross weight 390kgs/850(lbs)
Shipping size L1660 x W850 x H1700(mm)
L65.3 x W33.4 x H66.9(inch)

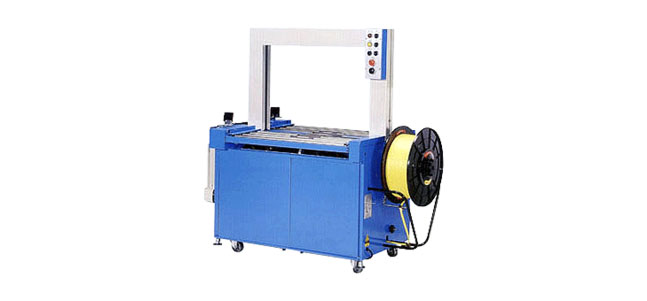

Fully Auto Strapping Machine - PW 0860C Stand Alone Model


Features :

  • The brush guiding mechanism ensures the strapping at the proper position and not to slant. Brilliant performance.
  • Rapid speed: 2.4 sec/per cycle, 25 cycles/per min.
  • Easy Maintenance: No Greasing, Mechanism is stable and durable, Easy operation.
  • Tension Adjustment: Can be adjustable at will, Max. tension is over 90 kgs.
  • Precision Structure: Mani machine's component is made of aluminum alloy. Control System is compatible. Add on a safety device, built for 24 hrs continuous operation.
  • Easy loading or unloading: To load or unload the strapping roll is convenient due to the dispenser is placed outside.
  • Extensive applications: Can be independent operation or combine with other machines for unmanned production or auto packaging systems.

Specifications :

Technical Specifications
Power supply 3Ø ,220V ,380V ,440V,(50/60Hz)
Strap width 9,12,15,19mm
PET Option 9,12,15,19mmx200Ø(ID)
Tension 0~70kgs
Speed 2.4 sec. / per strap
Power consumption 850W
Max. package size W850 x H600mm(W33.5" x H23.6")
Min. package size W100 x H30mm(W3.9" x H1.2")
Shipping Size L1480 x W700 x H1700mm
(L58.3" x W27.6" x H66.9")
Machine size L1440 x W640 x H1517mm
(L56.7" x W25.2" x H59.7")
N.W. 210 kgs, 462(lbs)
G.W. 250 kgs, 550(lbs)
