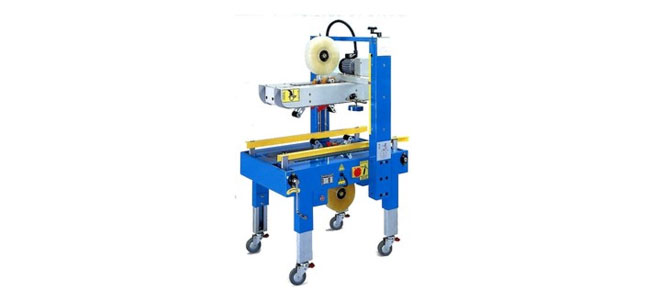

Carton Sealing Machines - PW552 TB


Features :

  • New tape head
  • Both side compression rollers
  • Top mast with cushion
  • Two-side guiding rail
  • Casters with brake

Options :

  • Extension roller table
  • 60 sec. auto-stop
  • Stainless steel structure SUS #304
  • 3 phase, 220/380/415/440V

Specifications :

Technical Specifications
Power supply 1 Phase, 110/220V, 50/60Hz
OPPh 2"/3" (Please advise when ordering)
Sealing Size L above 150 x W200~500 x H120~500mm (2" tape)
L above 150 x W225~500 x H120~500mm (3" tape)
Capacity 30 boxes/min. For box length 300mm (Belt speed 20M/min)
Net Weight 160 Kgs
Machine Size L1044 x W779 x H1569~1764 mm

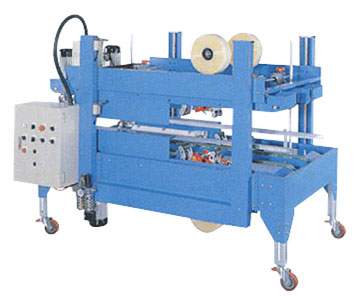

Auto Edge Carton Sealing Machine - PW 566EG


Features :

  • The machine is durable and designed for safety and low break-down.
  • Auto sealing top bottom edges and it is fast, solid and work efficiency.
  • Manual adjusted width.
  • Auto adjusted height.

WORKSTATION INTRODUCTION :

  • Carton sealing machine seals carton in center on both top and bottom sides.
  • After passing through the Center Mechanism, the carton enters in the Auto Edge Carton Sealing Machine.
  • Auto sealing the top and bottom edges.
  • Manual adjusted carton sizes.

Specifications :

Technical Specifications
Power supply 1 Ø, 110V,220V, (50/60Hz),4L
3 Ø, 220V,380V, 440V, (50/60Hz),4L
Air 5kgf/cm2
Electric consumption 2KW
Capacity 4~6 cartons/ min
Case range L300~600xW250~600xH250~500mm
Machine size L1700xW1132xH1377mm
Machine Weight 450 kgs
OPP width 2" or 3"
OPP length 1000Y
OPP thickness 55~70 microns
