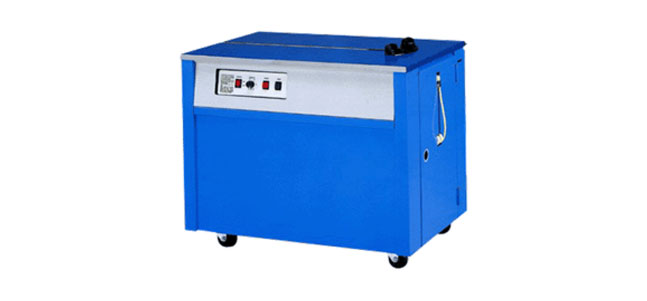

Semi-Auto Strapping Machines - PW 316-H


Features :

  • Standard accessory, its advantage is stable quality, durable material, and easy maintenance.
  • Special design-Control PP strap cooling time. It can make the PP strap to fasten well in any time.
  • Electricity-saving" device, the motor automatically stops running after 60 seconds pause to reduce the regular mechanical wear and to prolong the machine's life.
  • The advanced P.C.B microchip circuit board control system, less malfunction and easy maintenance.
  • Durable electro-magnetic clutch transmission means lesser mechanical wear and noise pollution.
  • New heater plate design improves warm-up-time, weiding speed and increase work efficiency.
  • Installing an auxiliary feed switch and cut switch at the control panel makes you operate more conveniently.

Specifications :

Technical Specifications
Power supply 1 Ø AC110,220V(50,60Hz), 1/4HP
Strap width 6,9,12,15 mm (adjustable)
Tension strength 15~50kgs
Strapping speed 2.0 sec./strap
Min. package size 60mm
Max. package size Any size
Dimension (LxWxH) (mm) 910x580x750
N.W. 100kgs
G.W. 120kgs
Packing size (LxWxH) (mm) 956x626x842

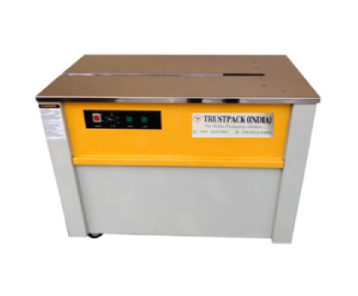

Semi-Auto Strapping Machines - JN 740H


Features :

  • Instant heating in 20 seconds
  • Economical design of control switch, independent PCB controls feeding, tensioning and heating.
  • External adjustable tension knob provides simple operation (optional).
  • Energy saving mode activates within 15 seconds of non-use and allows for instant operation.
  • Innovatory die-cast seal blade eliminates blade distortion, short circuiting and rapid aging that are common in many conventional strapping machines.
  • Easier changeover of straps suitable for 6~15mm strap width through strap guide.
  • Main Gear Box & Electro Magnetic Clutch are made in Japan.

Specifications :

Technical Specifications
Cycle Time 1.5 sec/strap
Tension range 15~55 kgs
Strap Width 6, 9, 12, 15.5 adjustable
Sealing Method Heating element
Reel Inside Diameter 200mm
Power Supply 220/50/PH
Table Height 780mm
Power Consumption 0.5 KW
Layout Dimension L902 x D575 x H780mm
Weight 115 Kgs

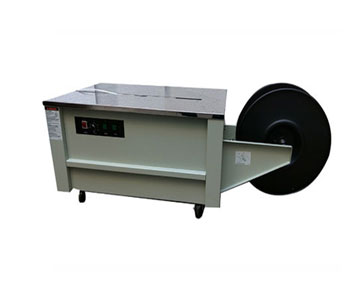

Semi-Auto Strapping Machines - JN 740L


Features :

  • Instant heating in 20 seconds
  • Economical design of control switch, independent PCB controls feeding, tensioning and heating.
  • External adjustable tension knob provides simple operation (optional).
  • Energy saving mode activates within 15 seconds of non-use and allows for instant operation.
  • Innovatory die-cast seal blade eliminates blade distortion, short circuiting and rapid aging that are common in many conventional strapping machines.
  • Easier changeover of straps suitable for 6~15mm strap width through strap guide.
  • Stainless steel frame is available for strapping humid products.
  • Main Gear Box & Electro Magnetic Clutch are made in Japan.

Specifications :

Technical Specifications
Cycle Time 1.5 sec/strap
Tension range 15~55 kgs
Strap Width 6, 9, 12, 15.5 adjustable
Sealing Method Heating element
Reel Inside Diameter 200mm
Power Supply 220/50/PH
Table Height
Power Consumption 0.5 KW
Layout Dimension L902 x D575 x H780mm
Weight 115 Kgs
